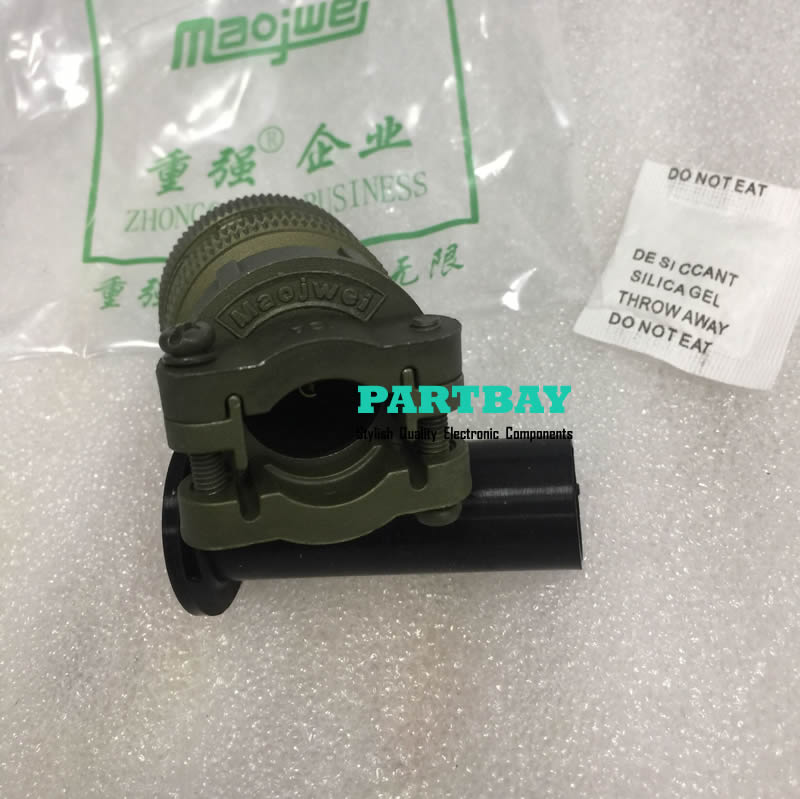

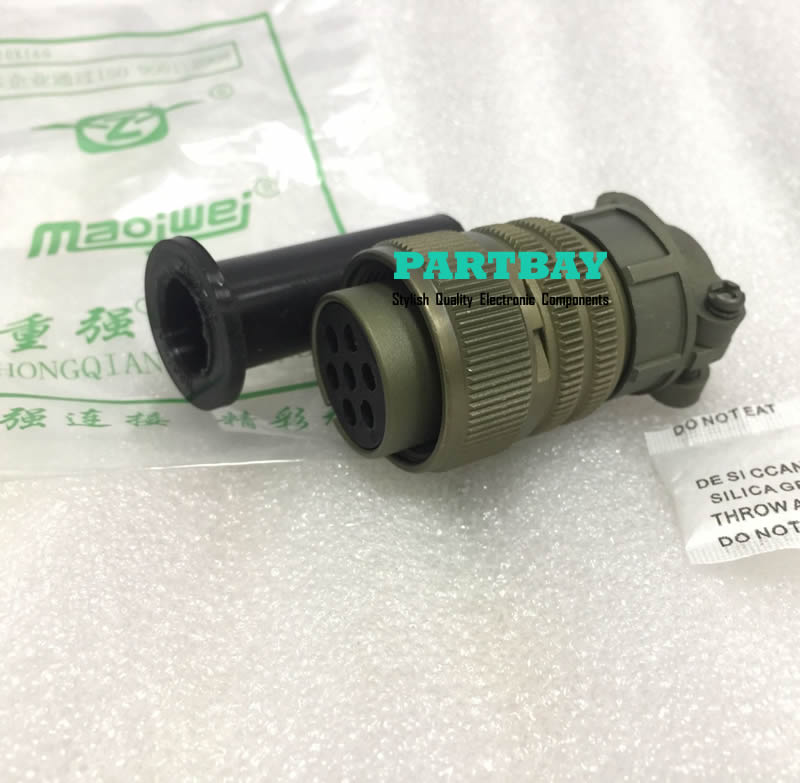

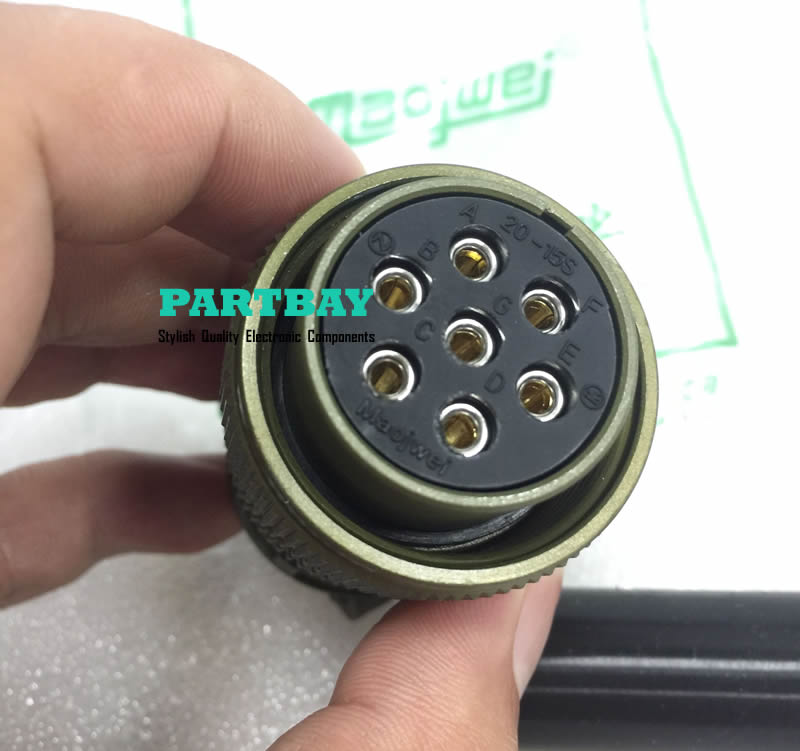

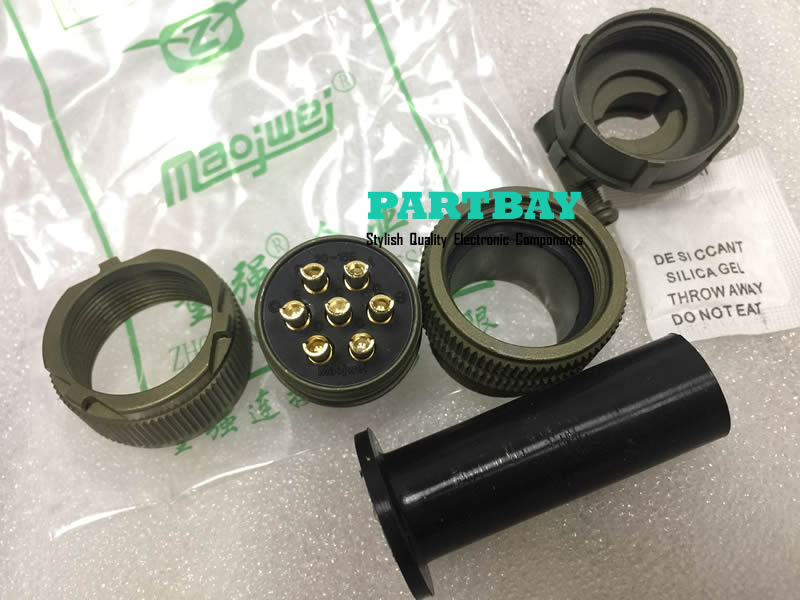

Maojwei Military Connector MS3106A-20-15S MS3106A-20-15P

Detailed description

Chat with me online

This is the description of Military Connector,Connector,ITT,DDK,Mil-C-5015,KUKDONG,Amphenol,MS3106A-20-15S connector

Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.

Features:(a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;

(b)MS3106 straight plug,MS3108 angled plug，MS3102 socket，MS3101plug，MS3100 plug，MS3057 cable clamp，MS25042/MS25043dust cap.

(c) Solder and crimping type;

(d) Good sealing performance, waterproof IP67;

(e）Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.

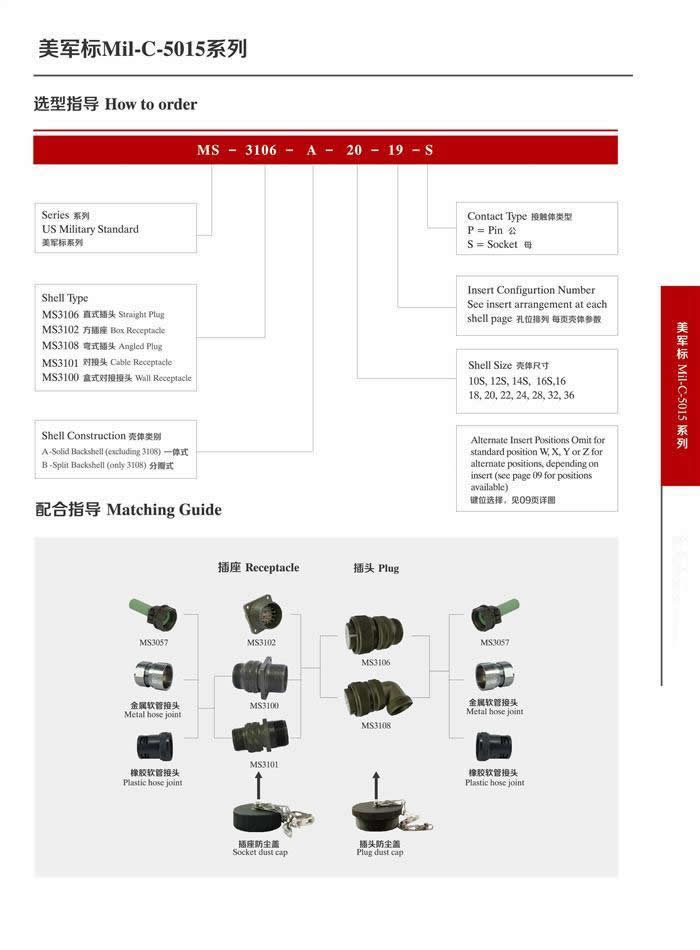

How To Choose Mil-C-5015 Connectors

Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2. Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48. Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .

Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber. Contact :copper alloy, gold plated. Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.

* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
