Maojwei Military Connector MIL 5015 Shell 22
- item No : MIL 5015 Shell 22
- Inquiry now
Detailed description
 Chat with me online
|
Explain:

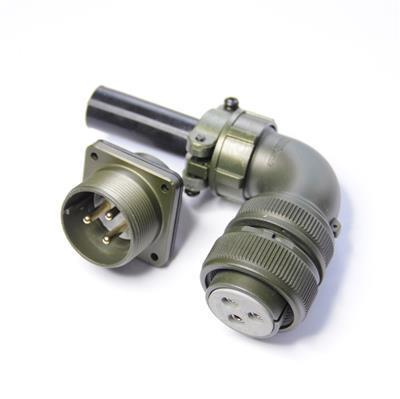

Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.
Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;
(b)MS3106 straight plug,MS3108 angled plug，MS3102 socket，MS3101plug，MS3100 plug，MS3057cable clamp，MS25042/25043dust cap.
(c) Solder and crimping type;
(d) Good sealing performance, waterproof IP67;
(e）Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.
Shell 22 plug and socket ,we have 22-1 2pins，22-2 3pins，22-4 5pins，22-22 4pins,22-23 8pins,22-19 14pins,22-14 19pins,22-16 9pins.10A 15A and 25A current.
Detail Code:MS3106A22-1S staight plug,MS3106A22-2S staight plug,MS3106A22-4S staight plug,MS3106A22-22S staight plug,MS3106A22-23S staight plug,MS3106A22-14S staight plug,MS3106A22-19S staight plug,MS3106A22-16S staight plug；
MS3108A22-1S angled plug,MS3108A22-2S angled plug,MS3108A22-4S angled plug,MS3108A22-22S angled plug,MS3108A22-23S angled plug,MS3108A22-19S angled plug,MS3108A22-14S angled plug,MS3108A22-16S angled plug；
MS3102A22-1P square socket,MS3102A22-2P square socket,MS3102A22-4P square socket,MS3102A22-23P square socket,MS3102A22-14P square socket,MS3102A22-19P square socket,MS3102A22-14P square socket,MS3102A22-16P square socket，P=pin，S=socket option，Welcome to choose.
Parameter:
Material and Technical Parameter：
Standard
Mil-C-5015 / JGB600
Coupling
thread coupling
Shell Material
High Strength Aluminum Alloy
Shell Finish
Zinc plated, army green/silver/black
Pin number
2,3,4,5,8,9,14,19pins
Pin arrangement Code

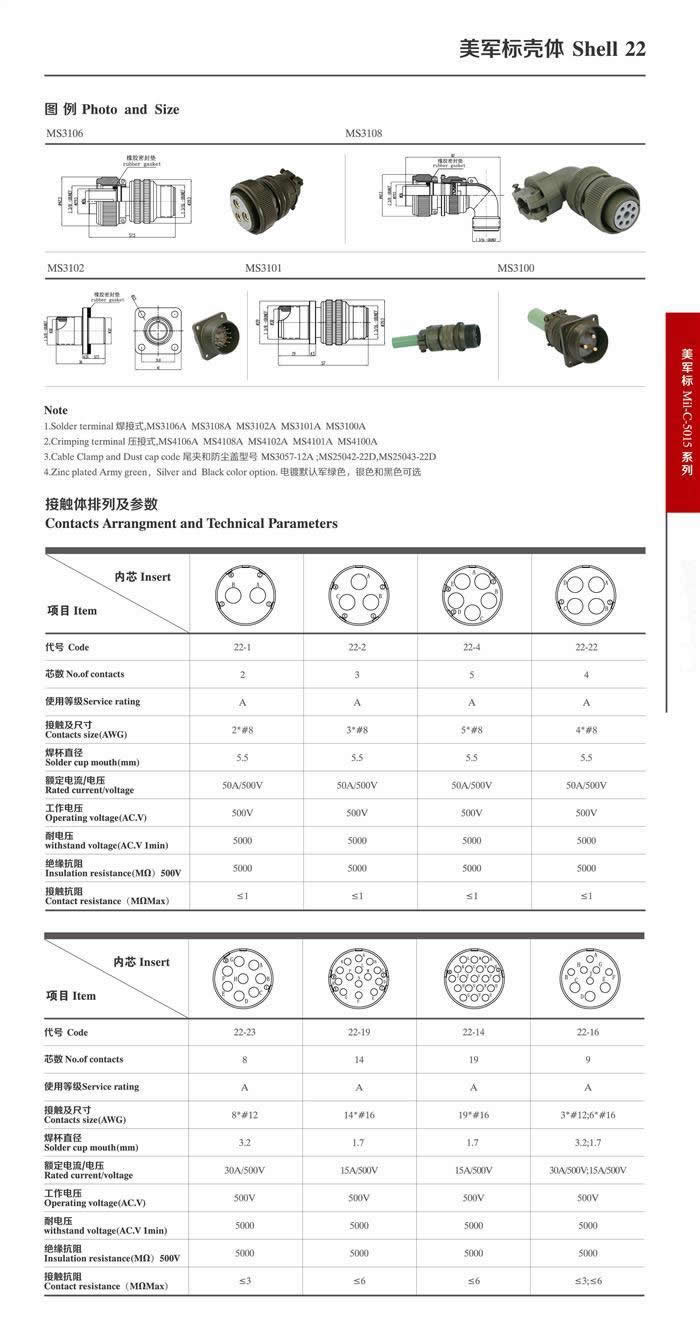

See below form
Contacts material
Copper Alloy; gold plated
Termination
solder / crimp
Gender
S female； P male
Solder cup diameter
1.2;1.7;2.5;3.6;5.7mm
Insulator Material
Synthetic Rubber
Insulator flame retardant grade
UL94-V0 220℃
Rate Voltage
500V
Cable diameter range
6---16mm
Rated Current
10A;15A;30A;55A
IP grade
IP67
Withstanding Voltage
5000V/1min
Salt Spray Test
60H EIA364.28
Operation Temperature
-55℃--150℃
Mating Cycle
500 times
Explain:
Features: (a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;
(b)MS3106 straight plug,MS3108 angled plug，MS3102 socket，MS3101plug，MS3100 plug，MS3057cable clamp，MS25042/25043dust cap.
(c) Solder and crimping type;
(d) Good sealing performance, waterproof IP67;
(e）Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.
Shell 22 plug and socket ,we have 22-1 2pins，22-2 3pins，22-4 5pins，22-22 4pins,22-23 8pins,22-19 14pins,22-14 19pins,22-16 9pins.10A 15A and 25A current.
Detail Code:MS3106A22-1S staight plug,MS3106A22-2S staight plug,MS3106A22-4S staight plug,MS3106A22-22S staight plug,MS3106A22-23S staight plug,MS3106A22-14S staight plug,MS3106A22-19S staight plug,MS3106A22-16S staight plug；
MS3108A22-1S angled plug,MS3108A22-2S angled plug,MS3108A22-4S angled plug,MS3108A22-22S angled plug,MS3108A22-23S angled plug,MS3108A22-19S angled plug,MS3108A22-14S angled plug,MS3108A22-16S angled plug；
MS3102A22-1P square socket,MS3102A22-2P square socket,MS3102A22-4P square socket,MS3102A22-23P square socket,MS3102A22-14P square socket,MS3102A22-19P square socket,MS3102A22-14P square socket,MS3102A22-16P square socket，P=pin，S=socket option，Welcome to choose.
Parameter:
Material and Technical Parameter：
|
Standard |
Mil-C-5015 / JGB600 | Coupling | thread coupling |
|
Shell Material |
High Strength Aluminum Alloy |
Shell Finish |
Zinc plated, army green/silver/black |
|
Pin number |
2,3,4,5,8,9,14,19pins |
Pin arrangement Code |
See below form |
|
Contacts material |
Copper Alloy; gold plated |
Termination |
solder / crimp |
|
Gender |
S female； P male |
Solder cup diameter |
1.2;1.7;2.5;3.6;5.7mm |
|
Insulator Material |
Synthetic Rubber | Insulator flame retardant grade | UL94-V0 220℃ |
|
Rate Voltage |
500V |
Cable diameter range |
6---16mm |
|
Rated Current |
10A;15A;30A;55A |
IP grade |
IP67 |
|
Withstanding Voltage |
5000V/1min |
Salt Spray Test |
60H EIA364.28 |
| Operation Temperature | -55℃--150℃ |
Mating Cycle |
500 times |
How To Choose Mil-C-5015 Connectors
Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2. Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48. Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .
Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber. Contact :copper alloy, gold plated. Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.
* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
Contact:
|
Add: |
China south city, Pinghu street, Longgang disc, Guangdong, China. |
|
Phone: |
 +86 159 1699 6539 |
|
Skype: |
 jason.feng45 |
| QQ: |
 2893442977
|
| Wechat： |
 15916996539
|
|
E-mail: |
 info@part-bay.com
|
