Maojwei Military Connector MS3102A-14-7

Detailed description

Chat with me online

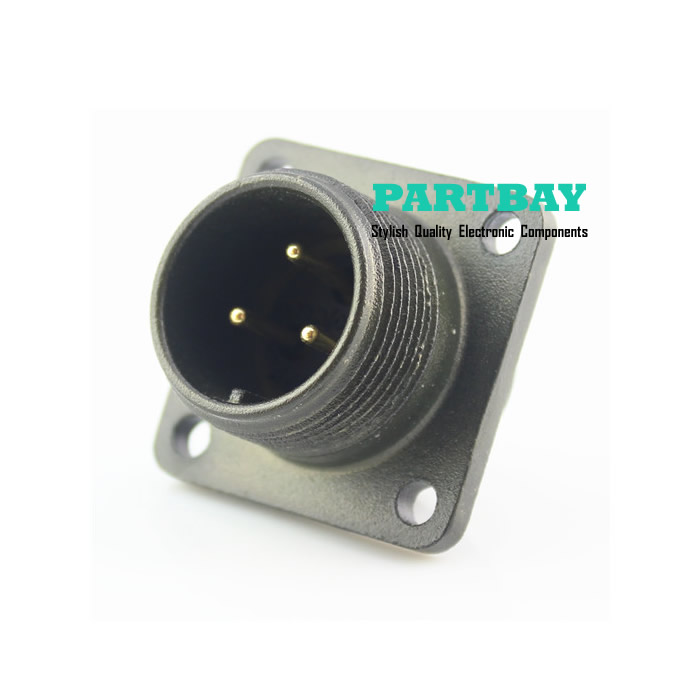

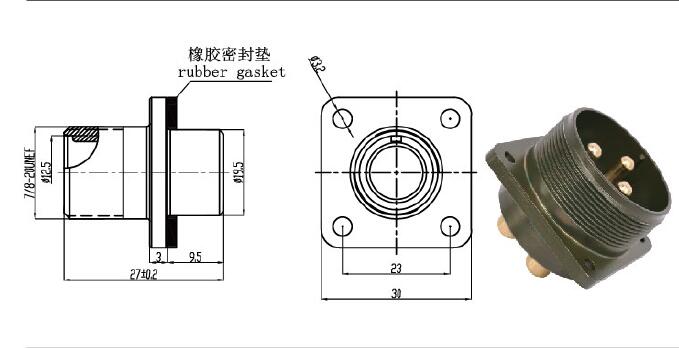

This is the description of MS3102A-14-7 male socket

Maojwei Mil-C-5015 series connectors conform to US military Mil-C-5015 standard(GJB600), with high strength Aluminum Alloy shell, Synthetic rubber insulator, threaded coupling, Alternate insert positioning, solderand crimping terminal, low cost, simple and practical design, widely used in industrial machinery and equipment, military , defense equipment, marine , automobile industry, instrument and servo motor etc. Our connectors can replace European and American similar products.

Features:(a) High quality,highwithstanding voltage, high reliability;low cost;light weight, different size;

(b)MS3106 straight plug,MS3108 angled plug，MS3102 socket，MS3101plug，MS3100 plug，MS3057 cable clamp，MS25042/MS25043dust cap.

(c) Solder and crimping type;

(d) Good sealing performance, waterproof IP67;

(e）Corrosion resistance; hard dielectric inserts;good electrical conductivity and mechanical strength.

Material and Technical Parameter：

Standard	Mil-C-5015 / JGB600	Coupling	thread coupling
Shell Material	High Strength Aluminum Alloy	Shell Finish	Zinc plated, army green/silver/black

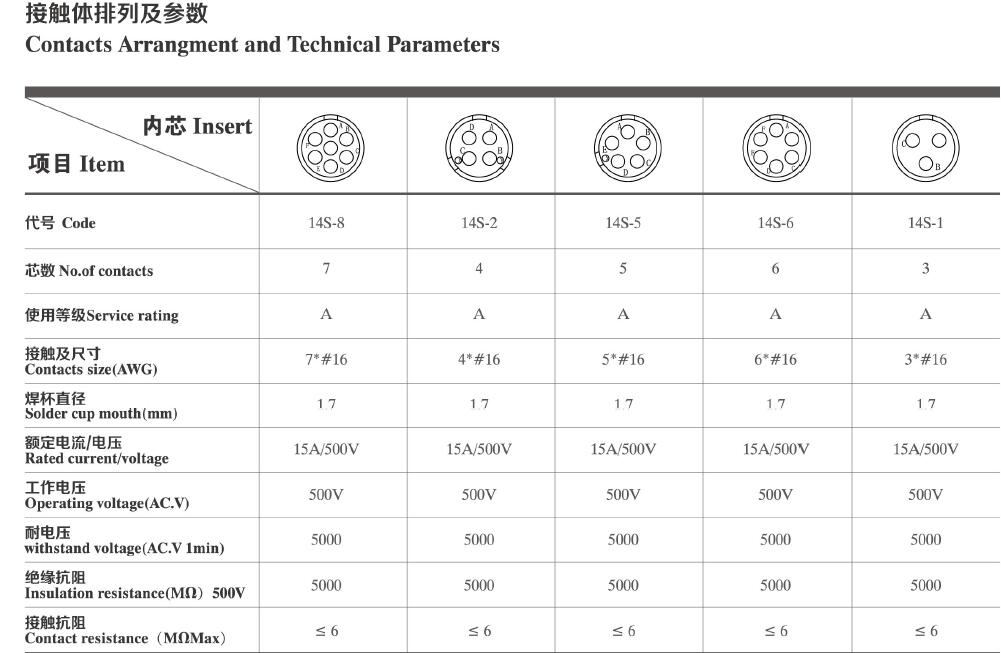

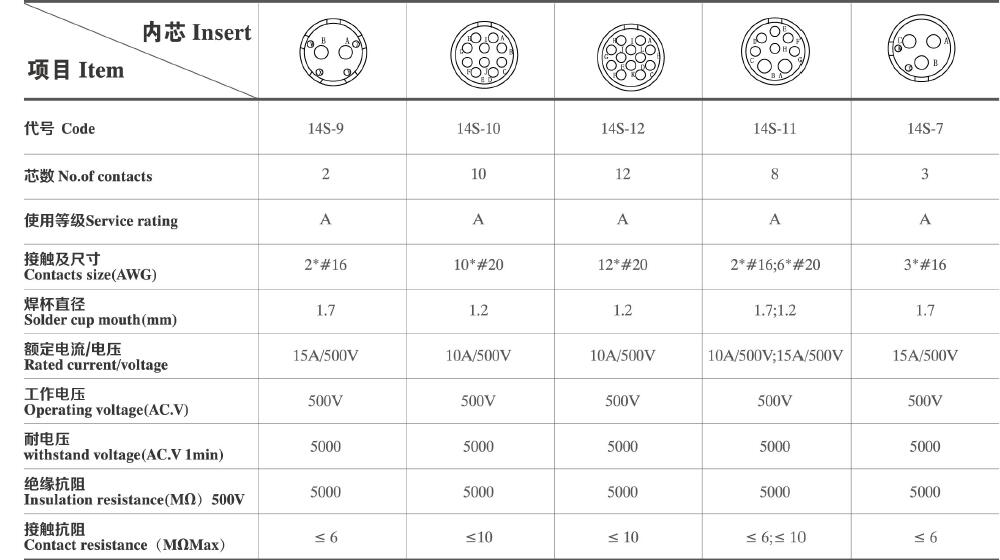

Pin number	1,2,3,4,5,6,7pins	Pin arrangement Code	See below form
Contacts material	Copper Alloy; gold plated	Termination	solder / crimp
Gender	S female； P male	Solder cup diameter	1.2mm ; 1.7mm
Insulator Material	Synthetic Rubber	Insulator flame retardant grade	UL94-V0 220℃
Rate Voltage	500V	Cable diameter range	4---5.7mm
Rated Current	10A; 15A;	IP grade	IP67
Withstanding Voltage	5000V/1min	Salt Spray Test	60H EIA364.28
Operation Temperature	-55℃--150℃	Mating Cycle	500 times

How To Choose Mil-C-5015 Connectors

Our company supply Mil-C-5015 series standard connector, the product fully meets the technical requirements of American military standard Mil-C-5015.Mil-C-5015 series electrical connectors is thread coupling, has been successfully mass used for domestic and foreign enterprises . Connector type: 3100- wall mounted socket; 3101- extension socket, 3102-square socket, 3106- straight plug. 3108-90 degree angled plug .Pin contact of diameter:φ1.6 φ2.4 φ3.6 φ5.7 φ9.2. Wire specifications: φ1.7-3.3 φ2.9-4.3 φ4.2-6.4 φ7.0-9.4 φ10.6-14.0 . Shell code: 8,10,12,14,16,18,20,22,24,28,32,36,40,44,48. Contact: 1-10 , 12,16,17,19,24,26,28,32,37,46,52,54,56 . connection thread: 5/8,3/4,7/8,1-20unf-2b, 1-3/16,1-17/16,1-3/4-18unf-2b .

Material: shell Aluminum Alloy, army green, black passivation of zinc plating. The insulator: synthetic rubber. Contact :copper alloy, gold plated. Insulation resistance: more than 5000m in Europe, Environment temperature: -55---125 degrees, Mechanical life: 500 times.

* * *More U.S. Mil-C-5015 Standard models and pins arrangement are in the R & D, please call or E-mail to ask.
